Experts Blog: Philip Russom

Philip RussomPhilip Russom is director of TDWI Research for data management and oversees many of TDWI’s research-oriented publications, services, and events. He is a well-known figure in data warehousing and business intelligence, having published over 500 research reports, magazine articles, opinion columns, speeches, Webinars, and more. Before joining TDWI in 2005, Russom was an industry analyst covering BI at Forrester Research and Giga Information Group. He also ran his own business as an independent industry analyst and BI consultant and was a contributing editor with leading IT magazines. Before that, Russom worked in technical and marketing positions for various database vendors. You can reach him at prussom@tdwi.org, @prussom on Twitter, and on LinkedIn at linkedin.com/in/philiprussom.


Philip Russom

Philip Russom

By Philip Russom


Evolving Data Warehouse Architectures: An Overview in 35 Tweets

By Philip Russom
Research Director for Data Management, TDWI

To help you better understand the ongoing evolution of data warehouse architectures and why you should care, I’d like to share with you the series of 35 tweets I recently issued on the topic. I think you’ll find the tweets interesting because they provide an overview of big data management and its best practices in a form that’s compact, yet amazingly comprehensive.

Every tweet I wrote was a short sound bite or stat bite drawn from my recent TDWI report Evolving Data Warehouse Architectures in the Age of Big Data. Many of the tweets focus on a statistic cited in the report, while other tweets are definitions stated in the report.

I left in the arcane acronyms, abbreviations, and incomplete sentences typical of tweets, because I think that all of you already know them or can figure them out. Even so, I deleted a few tiny URLs, hashtags, and repetitive phrases. I issued the tweets in groups, on related topics; so I’ve added some headings to this blog to show that organization. Otherwise, these are raw tweets.

Basic Components of the Average Data Warehouse Architecture

  1. Most DW Arch’s have 4 layers: logical, physical, hardware topology, data standards.
  2. DW logical architecture is mostly about data models, entity models & relationships.
  3. DW logical arch also defines standards for data models, dev practices, interfaces, etc.
  4. DW physical architecture is mostly a plan for data deployment on servers.
  5. DW physical arch also defines topology for hardware & software servers plus interfaces.

Users’ Views of Architectural Components

  1. #TDWI SURVEY SEZ: Data standards & rules are highest priority (71%) of #EDW architecture.
  2. #TDWI SURVEY SEZ: Logical design (66%) is the starting point of an #EDW architecture.
  3. #TDWI SURVEY SEZ: Physical plan (56%) locates logical pieces in an #EDW architecture.
  4. #TDWI SURVEY SEZ: Only 12% have #EDW that’s “collection of data & platforms without a plan.”
  5. #TDWI SURVEY SEZ: Only 12% feel Inmon vs Kimball argument is priority for #EDW architecture.

The Evolution of Data Warehouse Architectures

  1. #TDWI SURVEY SEZ: 79% say their #DataWarehouse has an architecture.
  2. #TDWI SURVEY SEZ: #EDW arch is evolving dramatically (22%), moderately (54%) or slightly (22%)
  3. #TDWI SURVEY SEZ: Driving #EDW arch evolution: #Analytics 57%, #BigData 56%, #RealTime 41%.
  4. #TDWI SURVEY SEZ: Driving #EDW arch evolution: BizPerfMgt 38%, OLAP 30%, UnstrucData 25%.
  5. #TDWI SURVEY SEZ: Driving #EDW arch evolution: competition 45%, compliance 29%, dep’ts 29%.

The Importance of Data Warehouse Architectures

  1. #TDWI SURVEY SEZ: Architecture extremely (79%) or moderately (19%) important to #EDW success.
  2. #TDWI SURVEY SEZ: #EDW Architecture is an opportunity (84%), not a problem (16%).

Benefits and Barriers for Data Warehouse Architecture

  1. #TDWI SURVEY SEZ: Stuff that benefits from #DWarch: #analytics, biz value, data breadth.
  2. #TDWI SURVEY SEZ: Barriers to #DWarch success: skills gap, sponsorship, #DataMgt, funding.

Multi-Platform Data Warehouse Environments

  1. #EDWarch trend: more standalone platforms: #analytics DBMSs, columnar, appliances, #Hadoop, etc.
  2. As #EDW workloads get more diverse, so do types of standalone data platforms in #EDW environment.
  3. As types and numbers of data platforms grow in DW environs, architecture gets ever more distributed. #
  4. Distributed #EDWarch is good&bad: provides workload optimized platforms. But may spawn data silos.
  5. Logical layer of #EDWarch more important than ever to unite big design across multi data platforms.

Single-Platform versus Multi-Platform DW Architectures

  1. #TDWI SURVEY SEZ: Totally pure #EDWarchs are rare. Only 15% have central monolithic #EDW.
  2. #TDWI SURVEY SEZ: Hybrid #EDWarchs are most common today = central #EDW + a few other data platforms (37%).
  3. #TDWI SURVEY SEZ: 2nd most common Hybrid #EDWarch = central #EDW + many other data platforms (16%).
  4. #TDWI SURVEY SEZ: Sometimes #EDW plays small role in #EDWarch compared to workload platforms (15%).
  5. #TDWI SURVEY SEZ: Some organizations (15%) have many workload-specific data platforms, but no true DW.

Big Data’s Influence on Evolving DW Architectures

  1. #TDWI SURVEY SEZ: 41% will extend existing core #EDW to handle #BigData.
  2. #TDWI SURVEY SEZ: 25% will deploy new data platforms to handle #BigData.
  3. #TDWI SURVEY SEZ: 23% have no strategy for their #EDW’s architecture, though they need one.
  4. #TDWI SURVEY SEZ: Only 6% feel they don’t need a strategy for their #EDW’s architecture.

Reports and Analytics have Different DW Architecture Needs

  1. Many users preserve #EDW for reporting, BizPerfMgt & OLAP, but take #analytics data elsewhere.
  2. Data prep for reports differs from same for #analytics. So, many users prep data on separate platforms.

Want to learn more about evolving data warehouse architectures?

For a more detailed discussion—in a traditional publication!—get the TDWI Best Practices Report, titled Evolving Data Warehouse Architectures in the Age of Big Data, which is available in a PDF file via a free download.

You can also register for and replay my TDWI Webinar, where I present the findings of the TDWI report Evolving Data Warehouse Architectures in the Age of Big Data.

Posted on April 15, 20140 comments


Q&A RE: The State of Big Data Integration

It’s still early days, but users are starting to integrate big data with enterprise data, largely for business value via analytics.

By Philip Russom, TDWI Research Director for Data Management

A journalist from the IT press recently sent me an e-mail containing several very good questions about the state of big data relative to integrating it with other enterprise data. Please allow me to share the journalist’s questions and my answers:

How far along are enterprises in their big data integration efforts?

According to my survey data, approximately 38% of organizations don’t even have big data, in any definition, so they’ve no need to do anything. See Figure 1 in my 2013 TDWI report Managing Big Data. Likewise, 23% have no plans for managing big data with a dedicated solution. See Figure 5 in that same report.

Even so, some organizations have big data, and they are already managing it actively. Eleven percent have a solution in production today, with another 61% coming in the next three years. See Figure 6.

Does data integration now tend to be haphazard, or one-off projects, in many enterprises, or are architectural strategies emerging?

I see all the above, whether with big data or the usual enterprise data. Many organizations have consolidated most of their data integration efforts into a centralized competency center, along with a centrally controlled DI architecture, whereas a slight majority tend to staff and fund DI on a per-application or per-department basis, without an enterprise strategy or architecture. Personally, I’d like to see more of the former and less of the latter.

What are the best approaches for big data integration architecture?

Depends on many things, including what kind of big data you have (relational, other structures, human language text, XML docs, etc.) and what you’ll do with it (analytics, reporting, archiving, content management). Multiple big data types demand multiple data platforms for storing big data, whereas multiple applications consuming big data require multiple processing types to prepare big data for those applications. For these reasons, in most cases, managing big data and getting business use from it involves multiple data management platforms (from relational DBMSs to Hadoop to NoSQL databases to clouds) and multiple integration tools (from ETL to replication to federation and virtualization).

Furthermore, capturing and integrating big data can be challenging from a data integration viewpoint. For example, the streaming big data that comes from sensors, devices, vehicles, and other machines requires special event-processing technologies to capture, triage, and route time-sensitive data—all in a matter of milliseconds. As with all data, you must transform big data as you move it from a source to a target, and the transformations may be simple (moving a click record from a Web log to a sessionization database) or complex (deducing a fact from human language text and generating a relational record from it).

What "traditional" approaches are being updated with new capabilities and connectors?

The most common data platform being used for capturing, storing, and managing big data today are relational databases, whether based on MPP, SMP, appliance, or columnar architectures. See Figure 16 in the Managing Big Data report. This makes sense, given that in a quarter of organizations big data is mostly or exclusively structured data. Even in organizations that have diverse big data types, structured and relational types are still the most common. See Figure 1.

IMHO, we’re fortunate that vendors’ relational database management systems (RDBMSs) (from the old brands to the new columnar and appliance-based ones) have evolved to scale up to tens and hundreds of terabytes of relational and otherwise structured data. Data integration tools have likewise evolved. Hence, scalability is NOT a primary barrier to managing big data.

If we consider how promising Hadoop technologies are for managing big data, it’s no surprise that vendors have already built interfaces, semantic layers, and tool functionality for accessing a broad range of big data managed in the Hadoop Distributed File System (HDFS). This includes tools for data integration, reporting, analysis, and visualization, plus some RDBMSs.

What are the enterprise "deliverables" coming from users’ efforts with big data (e.g., analytics, business intelligence)?

Analytics is the top priority and hence a common deliverable from big data initiatives. Some reports also benefit from big data. A few organizations are rethinking their archiving and content management infrastructures, based on big data and the potential use of Hadoop in these areas.

How is the role of data warehousing evolving to meet the emergence of Big Data?

Big data is a huge business opportunity, with few technical challenges or downsides. See figures 2 through 4 in the report Managing Big Data. Conventional wisdom says that the opportunity for business value is best seized via analytics. So the collection, integration, and management of big data is not an academic exercise in a vacuum. It is foundational to enabling the analytics that give an organization new and broader insights via analytics. Any calculus for the business return on managing big data should be based largely on the benefits of new analytics applied to big data.

On April 1, 2014, TDWI will publish my next big report on Evolving Data Warehouse Architectures in the Age of Big Data. At that time, anyone will be able to download the report for free from www.tdwi.org.

How are the new platforms (such as Hadoop) getting along with traditional platforms such as data warehouses?

We say “data warehouse” as if it’s a single monolith. That’s convenient, but not very accurate. From the beginning, data warehouses have been environments of multiple platforms. It’s common that the core warehouse, data marts, operational data stores, and data staging areas are each on their own standalone platforms. The number of platforms increased early this century, as data warehouse appliances and columnar RDBMSs arrived. It’s now increasing again, as data warehouse environments now fold in new data platforms in the form of the Hadoop Distributed File System (HDFS) and NoSQL databases. The warehouse has always evolved to address new technology requirements and business opportunities; it’s now evolving again to assure that big data is managed appropriately for the new high-value analytic applications that many businesses need.

For an exhaustive discussion of this, see my 2013 TDWI report Integrating Hadoop into Business Intelligence and Data Warehousing.

Posted on January 22, 20140 comments


Managing Big Data: An Overview in 30 Tweets

By Philip Russom
Research Director for Data Management, TDWI

To help you better understand new practices for managing big data and why you should care, I’d like to share with you the series of 30 tweets I recently issued on the topic. I think you’ll find the tweets interesting, because they provide an overview of big data management and its best practices in a form that’s compact, yet amazingly comprehensive.

Every tweet I wrote was a short sound bite or stat bite drawn from my recent TDWI report “Managing Big Data.” Many of the tweets focus on a statistic cited in the report, while other tweets are definitions stated in the report.

I left in the arcane acronyms, abbreviations, and incomplete sentences typical of tweets, because I think that all of you already know them or can figure them out. Even so, I deleted a few tiny URLs, hashtags, and repetitive phrases. I issued the tweets in groups, on related topics; so I’ve added some headings to this blog to show that organization. Otherwise, these are raw tweets.

Types of Multi-Structured Data Managed as Big Data
1. #TDWI SURVEY SEZ: 26% of users manage #BigData that’s ONLY structured, usually relational.
2. #TDWI SURVEY SEZ: 31% manage #BigData that’s eclectic mix of struc, unstruc, semi, etc.
3. #TDWI SURVEY SEZ: 38% don’t have #BigData by any definition. Hear more in #TDWI Webinar Oct.8 noonET http://bit.ly/BDMweb
4. Structured (relational) data from traditional apps is most common form of #BigData.
5. #BigData can be industry specific, like unstruc’d text in insurance, healthcare & gov.
6. Machine data is special area of #BigData, with as yet untapped biz value & opportunity.

Reasons for Managing Big Data Well
7. Why manage #BigData? Keep pace w/growth, biz ROI, extend ent data arch, new apps.
8. Want to get biz value from #BigData? Manage #BigData for purposes of advanced #analytics.
9. #BigDataMgt yields larger samples for apps that need it: 360° views, risk, fraud, customer seg.
10. #TDWI SURVEY SEZ: 89% feel #BigDataMgt is opportunity. Mere 11% think it’s a problem.
11. Key benefits of #BigDataMgt are better #analytics, datasets, biz value, sales/marketing.
12. Barriers to #BigDataMgt: low maturity, weak biz support, new design paradigms.
13. #BigDataMgt non-issues: bulk load, query speed, scalability, network bandwidth.

Strategies for Users’ Big Data Management Solutions
14. #TDWI SURVEY SEZ: 10% have #BigDataMgt solution in production; 10% in dev; 20% prototype; 60% nada. #TDWI Webinar Oct.8 http://bit.ly/BDMweb
15. #TDWI SURVEY SEZ: Most common strategy for #BigDataMgt: extend existing DataMgt systems.
16. #TDWI SURVEY SEZ: 2nd most common strategy for #BigDataMgt: deploy new DataMgt systems for #BigData.
17. #TDWI SURVEY SEZ: 30% have no strategy for #BigDataMgt though they need one.
18. #TDWI SURVEY SEZ: 15% have no strategy for #BigDataMgt cuz they don’t need one.

Ownership and Use of Big Data Management Solutions
19. Some depts. & groups have own #BigDataMgt platforms, including #Hadoop. Beware teramart silos!
20. Trend: #BigDataMgt platforms supplied by IT as infrastructure. Imagine shared #Hadoop cluster.
21. Who does #BigDataMgt? analysts 22%; architects 21%; mgrs 21%; tech admin 13%; app dev 11%.

Tech Specs for Big Data Management Solutions
22. #TDWI SURVEY SEZ: 97% of orgs manage structured #BigData, followed by legacy, semi-struc, Web data etc.
23. Most #BigData stored on trad drives, but solid state drives & in-memory functions are gaining.
24. #TDWI SURVEY SEZ: 10-to-99 terabytes is the norm for #BigData today.
25. #TDWI SURVEY SEZ: 10% have broken the 1 petabyte #BigData barrier. Another 13% will within 3 years.

A Few Best Practices for Managing Big Data
26. For open-ended discovery-oriented #analytics, manage #BigData in original form wo/transformation.
27. Reporting and #analytics are different practices; managing #BigData for each is, too.
28. #BigData needs data standards, but different ones compared to other enterprise data.
29. Streaming #BigData is easy to capture & manage offline, but tough to process in #RealTime.
30. Non-SQL, non-relational platforms are coming on strong; BI/DW needs them for diverse #BigData.

Want to learn more about managing big data?

For a much more detailed discussion—in a traditional publication!—get the TDWI Best Practices Report, titled Managing Big Data, available in a PDF file via a free download.

You can also register for and replay my TDWI Webinar, where I present the findings of Managing Big Data.

Please consider taking courses at the TDWI World Conference in Boston, October 20–25, 2013. Enroll online.
============================
Philip Russom is the research director for data management at The Data Warehousing Institute (TDWI). You can reach him at prussom@tdwi.org or follow him as @prussom on Twitter.

Posted on October 11, 20130 comments


Analytics and Reporting Are Two Different Practices

Treat them differently, if you want to get the most out of each.

By Philip Russom, TDWI Research Director for Data Management

I regularly get somewhat off-base questions from users who are in the thick of implementing or growing their analytic programs, and therefore get a bit carried away. Here’s a question I’ve heard a lot recently: “Our analytic applications generate so many insights that I should decommission my enterprise reporting platform, right?” And here’s a related question: “Should we implement Hadoop to replace our data warehouse and/or reporting platform?”

The common misconception I perceive behind these questions (which makes them “off-base” in my perception) is that people seem to be forgetting that analytics and reporting are two different practices. Analytics and reporting serve different user constituencies, produce different deliverables, prepare data differently, and support organizational goals differently. Despite a fair amount of overlap, I see analytics and reporting as complementary, which means you most likely need both and neither will replace the other. Furthermore, due to their differences, each has unique tool and data platform requirements that you need to satisfy, if you’re to get the most out of each.

Allow me to net it out with a few sweeping generalizations.

Reporting is mostly about entities and facts you know well, represented by highly polished data that you know well. And that data usually takes the form of carefully modeled and cleansed data with rich metadata and master data that’s managed in a data warehouse. In fact, it’s difficult to separate reporting and data warehouses, because most users designed their DWs first and foremost as a repository for reporting and similar practices such as OLAP, performance management, dashboards, and operational BI.

I regularly hear claims that Hadoop can replace a true DW. But I doubt this, because the current state of Hadoop cannot satisfy the data requirements of enterprise reporting near as well as the average DW can. Ultimately, it’s not about the warehouse per se; it’s about practices a DW supports well, such as reporting. I reserve the right to change my mind in the future, because Hadoop gets more sophisticated almost daily. My real point: most enterprise reporting depends on a DW for success, so keep and protect the DW.

Advanced analytics enables the discovery of new facts you didn’t know, based on the exploration and analysis of data that’s probably new to you. New data sources generally tell you new things, which is one reason organizations are analyzing big data more than ever before. Unlike the pristine data that reports operate on, advanced analytics works best with detailed source data in its original (even messy) form, using discovery oriented technologies, such as mining, statistics, predictive algorithms, and natural language processing. Sure, DWs can be expanded to support some forms of big data and advanced analytics. But the extreme volumes and diversity of big data are driving more and more users to locate big data on a platform besides a DW, such as Hadoop, DW appliances, or columnar databases.

I personally think that providing separate data platforms for reporting and analytics is a win-win data strategy. It frees up capacity on the DW, so it can continue growing and supporting enterprise reporting plus related practices. And it gives advanced analytics a data platform that’s more conducive to exploration and discovery than the average DW is.

Reporting is like a “high-volume business,” whereas analytics is like a “high-value business.” For example, with so-called enterprise business intelligence, thousands of concurrent report consumers access tens of thousands of reports that are refreshed nightly. By comparison, a small team of data analysts can transform an organization with a few high-value insights, such as new customer segments, visibility into costs, correlations between supplies and product quality, fraud detection, risk calculations, and so on. For completely different reasons, you need both reporting and analytics to serve the full range of user constituencies and provide many different levels of information and insight.

Most reports demand numeric precision, whereas most analyses don’t. Think financial reports (accurate to the penny) versus website page view reports (where guesstimates are fine).

Most enterprise reports require an audit trail, whereas few analyses do. Think regulatory reports versus the scores of an analytic model for customer churn.

Data management techniques differ. Squeaky clean report data demands elaborate data processing (for ETL, quality, metadata, master data, and so on), whereas preparing raw source data for analytics is simpler, though at higher levels of scale.

CONCLUSIONS: Despite some overlap, enterprise reporting and advanced analytics are so different as to be complementary. Hence, neither will replace the other. Both do important things for an information-driven organization, so you must give each what it needs for success, both at the tool level and at the data management level. Taking seriously the data requirements of big data analytics may lead you to implement Hadoop; but that doesn’t mean that Hadoop will replace a DW, which is still required to satisfy the data requirements of reporting and related practices, such as OLAP, performance management, dashboards, and operational BI.

Posted on September 26, 20130 comments


Evolving Data Warehouse Architectures: Integrating HDFS with an RDBMS Alleviates the Limitations of Both

Hadoop has limitations. But the relational database management systems used for data warehousing do, too. Luckily, their strengths are complementary.

By Philip Russom, TDWI Research Director for Data Management

In a recent blog in this series, I discussed “The Roles of Hadoop” in evolving data warehouse architectures. (There’s a link to that blog at the end of this blog.) In response, a few people asked me (I’m paraphrasing): “Since the Hadoop Distributed File System (HDFS) is so useful, can it replace the relational database management system (RDBMS) that’s at the base of my current data warehouse and its architecture?”

The short answer is: “No.” The long answer is: “Not today, and probably not in the future.” The main reason is that Hadoop—in its current form—lacks (or is weak with) many of the functions that we depend on in our RDBMSs. As you’ll see in the list below, most of the RDBMS functions I have in mind enable feature-rich and high-performance access to stored data via SQL. Other functions concerns tools for data security and administration.


Just so you know where this blog is going: Hadoop has limitations, but the average data warehouse does, too. Luckily, the strengths and weaknesses of the two are complementary (for the most part). When you integrate Hadoop and an RDBMS, they fill in each other’s holes and provide a more broadly capable data warehouse architecture than has been possible until now.

Hadoop’s Limitations Relative to RDBMSs Used for Data Warehousing
Despite all the goodness of Hadoop I described in a previous blog, there are areas within data warehouse architectures where HDFS isn’t such a good fit:

RDBMS functionality. HDFS is a distributed file system and therefore lacks capabilities we expect from relational database management systems (RDBMSs), such as indexing, random access to data, support for standard SQL, and query optimization. But that’s okay, because HDFS does things RDBMSs do not do as well, such as managing and processing massive volumes of file-based, unstructured data. For minimal DBMS functionality (though not fully relational), users can layer HBase over HDFS, as well as the query framework called Hive.

Low-latency data access and queries. HDFS’s batch-oriented, serial-execution engine means that it’s not the best platform for real-time or speedy data access or queries. Furthermore, Hadoop lacks mature query optimization. Hence, the selective random access to data and iterative ad hoc queries that we take for granted with RDBMSs are alien to Hadoop.

An RDBMS integrated with Hadoop can provide needed query support. HBase is a possible solution, if all you need is a record store, not a full-blown DBMS. And upcoming improvements to Hadoop Hive and the new Impala query engine will address some of the latency issues.


Streaming data. HDFS and other Hadoop products can capture data from streaming sources (Web servers, sensors, machinery) and append it to files. But, being inherently batch, they are ill-equipped to process that data in real time. In my opinion at this date, such extremes of real-time analytics are best done with specialized tools for complex event processing (CEP) and/or operational intelligence (OI) from third-party vendors.

Granular security. Hadoop today includes a few security features, such as file-permission checks, access control for job queues, and service-level authorization. Add-on products that provide encryption and LDAP integration are available for Hadoop from a few third-party vendors. Since HDFS is not a DBMS (and Hadoop data doesn’t necessarily come in relational structures), don’t expect granular security at the row or field level, as in an RDBMS.

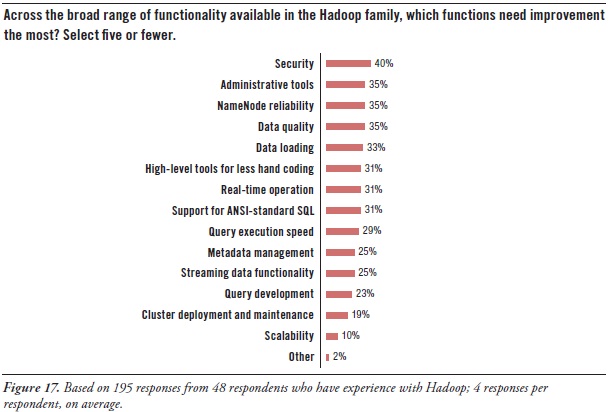

Administrative tools. According to a TDWI survey, security is Hadoop users’ most pressing need, followed by a need for better administrative tools, especially for cluster deployment and maintenance. The good news is that a few vendors offer tools for Hadoop administration, and an upgrade of open-source Ambari is coming.

SQL-based analytics. With the above latency limitations in mind, HDFS is a problematic choice for workloads that are iterative and query based, as with SQL-based analytics. Furthermore, Hadoop products today have limited support for standard SQL. A number of vendor products (from RDBMSs to data integration and reporting tools) can provide SQL support today, and open-source Hadoop has new incubator projects that will eventually provide adequate support for SQL. These are critical if Hadoop is to become a productive part of a SQL-driven data warehouse architecture.

I’m not making up these limitations for Hadoop. The list is based on survey results and user interviews, as reported in my 2013 TDWI Best Practices Report: Integrating Hadoop into BI and Data Warehousing.

In Defense of Hadoop
My list of limitations might seem like “Hadoop bashing” to some readers, but that is not what I intend. So let me restate what I stated positively in the last blog: “HDFS and other Hadoop tools promise to extend and improve some areas within data warehouse architectures.”

Sure, Hadoop’s help is limited to “some areas.” But the fantastically fortuitous fact is that most of Hadoop’s strengths are in areas where most warehouses and BI technology stacks are weak, such as unstructured data, outrageously large data sets, non-SQL algorithmic analytics, and the flood of files that’s drowning many of us. Conversely, Hadoop’s limitations (as discussed above) are mostly met by mature functionality available today from a wide range of RDBMS types (OLTP databases, columnar databases, DW appliances, etc.), plus admin tools. In that light, I hope it’s clear that Hadoop and the average data warehouse are complementary (despite a bit of overlap), so it’s unlikely that one could replace the other, as I am often asked.


Integrating Hadoop with an RDBMS Alleviates the Limitations of Both
The trick, of course, is making HDFS and an RDBMS work together optimally. To that end, one of the critical success factors for assimilating Hadoop into evolving data warehouse architectures is the improvement of interfaces and interoperability between HDFS and RDBMSs. Luckily, this is well under way, due to efforts from software vendors and the open source community. And technical users are starting to leverage HDFS/RDBMS integration.

For example, an emerging best practice among DW professionals with Hadoop experience is to manage diverse big data in HDFS, but process it and move the results (via ETL or other data integration media) to RDBMSs (elsewhere in the DW architecture) that are more conducive to SQL-based analytics. HDFS serves as a massive data staging area. A similar best practice is to use an RDBMS as a front-end to HDFS data; this way, data is moved via queries (whether ad hoc or standardized), not via ETL jobs. HDFS serves as a large, diverse operational data store. For more information about these practices, replay my recent TDWI Webinar: "Ad Hoc Query Speed for Hadoop."

Other Blogs in the Evolving Data Warehouse Architectures series:
From EDW to DWE
The Role(s) of Hadoop

Posted on September 2, 20130 comments


Evolving Data Warehouse Architectures: The Roles of Hadoop

HDFS and other Hadoop tools promise to extend and improve some areas within data warehouse architectures
By Philip Russom, TDWI Research Director for Data Management

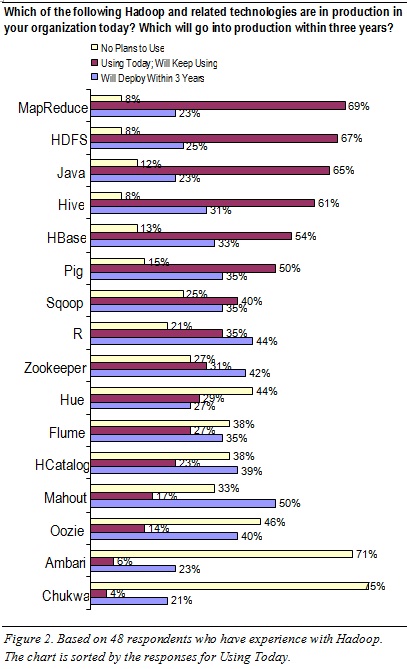

In a TDWI survey I designed and ran in 2012, 88% of the users surveyed reported that the Hadoop ecosystem of products is a business opportunity (not a technology problem) because it enables new types of applications. When asked which types of applications benefit most from Hadoop, survey respondents chose (in priority order) big data analytics, advanced analytics (i.e., data mining, statistical analysis, and complex SQL), and discovery analytics. After these three analytic application types, respondents then chose two data management use cases for Hadoop, namely information exploration and complementing a data warehouse. Other data management uses seen in the survey include data archiving, transforming big data for analytics, and data staging.

If you pull together all the things I just mentioned, it’s quite a list of use cases in data warehousing for the Hadoop Distributed File System (HDFS) and other Hadoop tools (MapReduce, Hive, HBase, HCatalog, Impala, etc.). And many of these – if implemented in a multi-platform data warehouse environment (DWE) – would have a strong influence on the architecture of that data environment.

Promising Uses of Hadoop that Impact DW Architectures
I see a handful of areas in data warehouse architectures where HDFS and other Hadoop products have the potential to play positive roles:

Data staging. A lot of data processing occurs in a DW’s staging area, to prepare source data for specific uses (reporting, analytics, OLAP) and for loading into specific databases (DWs, marts, appliances). Much of this processing is done by homegrown or tool-based solutions for extract, transform, and load (ETL). Imagine staging and processing a wide variety of data on HDFS.

For users who prefer to hand-code most of their solutions for extract, transform, and load (ETL), they will most likely feel at home in code-intense environments like Apache MapReduce. And they may be able to refactor existing code to run there. For users who prefer to build their ETL solutions atop a vendor tool, the community of vendors for ETL and other data management tools is rolling out new interfaces and functions for the entire Hadoop product family.

Note that I’m assuming that (whether you use Hadoop or not), you should physically locate your data staging area(s) on standalone systems outside the core data warehouse, if you haven’t already. That way, you preserve the core DW’s capacity for what it does best: squeaky clean, well modeled data (with an audit trail via metadata and master data) for standard reports, dashboards, performance management, and OLAP. In this scenario, the standalone data staging area(s) offload most of the management of big data, archiving source data, and much of the data processing for ETL, data quality, and so on.

Data archiving. When organizations embrace forms of advanced analytics that require detail source data, they amass large volumes of source data, which taxes areas of the DW architecture where source data is stored. Imagine managing detailed source data as an archive on HDFS.

You probably already do archiving with your data staging area, though you probably don’t call it archiving. If you think of it as an archive, maybe you’ll adopt the best practices of archiving, especially information lifecycle management (ILM), which I feel is valuable but woefully vacant from most DWs today. Archiving is yet another thing the staging area in a modern DW architecture must do, thus another reason to offload the staging area from the core DW platform.

Traditionally, enterprises had three options when it came to archiving data: leave it within a relational database, move it to tape or optical disk, or delete it. Hadoop’s scalability and low cost enable organizations to keep far more data in a readily accessible online environment. An online archive can greatly expand applications in business intelligence, advanced analytics, data exploration, auditing, security, and risk management.

Multi-structured data. Relatively few organizations are getting BI value from semi- and unstructured data, despite years of wishing for it. Imagine HDFS as a special place within your DW environment for managing and processing semi-structured and unstructured data. Another way to put it is: imagine not stretching your RDBMS-based DW platform to handle data types that it’s not all that good with.

One of Hadoop’s strongest complements to a DW is its handling of semi- and unstructured data. But don’t go thinking that Hadoop is only for unstructured data: HDFS handles the full range of data, including structured forms, too. In fact, Hadoop can manage just about any data you can store in a file and copy into HDFS.

Processing flexibility. Given its ability to manage diverse multi-structured data, as I just described, Hadoop’s NoSQL approach is a natural framework for manipulating non-traditional data types. Note that these data types are often free of schema or metadata, which makes them challenging for SQL-based relational DBMSs. Hadoop supports a variety of programming languages (Java, R, C), thus providing more capabilities than SQL alone can offer.

In addition, Hadoop enables the growing practice of “late binding”. Instead of transforming data as it’s ingested by Hadoop (the way you often do with ETL for data warehousing), which imposes an a priori model on data, structure is applied at runtime. This, in turn, enables the open-ended data exploration and discovery analytics that many users are looking for today.

Advanced analytics. Imagine HDFS as a data stage, archive, or twenty-first-century operational data store that manages and processes big data for advanced forms of analytics, especially those based on MapReduce, data mining, statistical analysis, and natural language processing (NLP). There’s much to say about this; in a future blog I’ll drill into how advanced analytics is one of the strongest influences on data warehouse architectures today, whether Hadoop is in use or not.

Stay tuned, because I’ll soon post more blogs about evolving data warehouse architectures. In the meantime, please read the new TDWI Checklist “Where Hadoop Fits in Your Data Warehouse Architecture.”

Other Blogs in the Evolving Data Warehouse Architectures series:
From EDW to DWE

Posted on August 4, 20130 comments


Back to Top

Channels by Topic

  • Agile BI »
    Includes:
    • Agile
    • Scoping
    • Principles
    • Iterations
    • Scrum
    • Testing
  • Big Data Analytics »
    Includes:
    • Advanced Analytics
    • Diverse Data Types
    • Massive Volumes
    • Real-time/Streaming
    • Hadoop
    • MapReduce
  • Business Analytics »
    Includes:
    • Advanced Analytics
    • Predictive
    • Customer
    • Spatial
    • Text Mining
    • Big Data
  • Business Intelligence »
    Includes:
    • Agile
    • In-memory
    • Search
    • Real-time
    • SaaS
    • Open source
  • BI Leadership »
    Includes:
    • Latest Trends
    • Technologies
    • Thought Leadership
  • Data Analysis and Design »
    Includes:
    • Business Requirements
    • Metrics
    • KPIs
    • Rules
    • Models
    • Dimensions
    • Testing
  • Data Management »
    Includes:
    • Data Quality
    • Integration
    • Governance
    • Profiling
    • Monitoring
    • ETL
    • CDI
    • Master Data Management
    • Analytic/Operational
  • Data Warehousing »
    Includes:
    • Platforms
    • Architectures
    • Appliances
    • Spreadmarts
    • Databases
    • Services
  • Performance Management »
    Includes:
    • Dashboards, Scorecards
    • Measures
    • Objectives
    • Compliance
    • Profitability
    • Cost Management
  • Program Management »
    Includes:
    • Leadership
    • Planning
    • Team-Building
    • Staffing
    • Scoping
    • Road Maps
    • BPM, CRM, SCM
  • Master Data Management »
    Includes:
    • Business Definitions
    • Sharing
    • Integration
    • ETL, EAI, EII
    • Replication
    • Data Governance

Sponsored Links
